09 20 003 0301 HARTING
Symbol Micros:
Z 09200030301
Case : Rys.09200030301

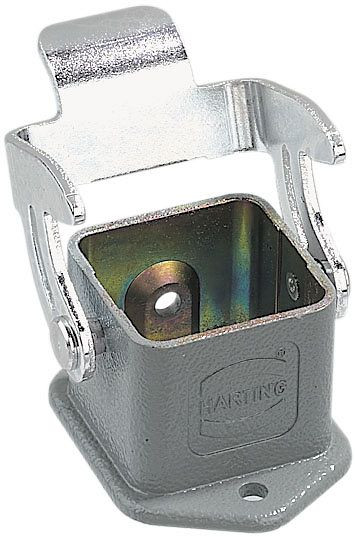

Metal shell for Han connectors, size 3A, straight, color grey, with lock,
Parameters
| Case: | Size 3A |
| Mounting: | On panel |
| Type of pin configuration: | N/A |
| Connector: | Housing |
| Series: | Han A |
| Case: | Size 3A |
| Mounting: | On panel |
| Type of pin configuration: | N/A |
| Connector: | Housing |
| Series: | Han A |
Detailed description
Micros Part Number | Z 09200030301 |
Manufacturer Part Number | 09 20 003 0301 |
RoHS conformity | Yes |
Size | 3 A |
Material, locking lever | steel, zinc-plated |
Lever type | double locking lever |
Type of hood/housing | Bulkhead mounted housings |
Type of hood/housing, amendment | straight |
Series | Han A® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Equivalents
Item available on request
