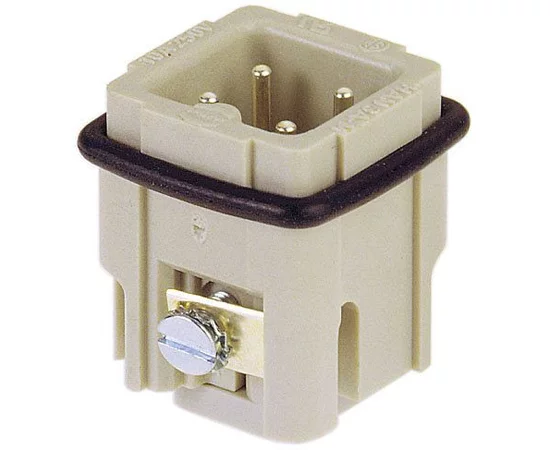

Insert with male contacts HAN A, size 3A

Symbol Micros: Z 09200032611
Contractor Symbol:
Case : Rys.09200032611
3 poles+PE, 10 A 230/400 V 4 kV 3, screw termination
Parameters
Case: Size 3A
Mounting: Screw clamps
Type of pin configuration: 3+PE
Connector: Connect pad
Series: Han A
Manufacturer:: Harting Manufacturer part number: 09200032611 RoHS Case style: Rys.09200032611
In stock:
10 pcs.
Quantity of pcs. 1+ 3+ 10+ 20+ 50+
Net price (EUR) 8,7178 7,4386 6,6392 6,3541 6,0969
Add to comparison tool
Packaging:
10
Case: Size 3A
Mounting: Screw clamps
Type of pin configuration: 3+PE
Connector: Connect pad
Series: Han A
Detailed description




Micros Part Number

Z 09200032611

Manufacturer Part Number

09 20 003 2611

Gender

male

Mechanical working life - mating cycles

>= 500

RoHS conformity

Yes

Size

3 A

Series

Han A®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Screw terminal

Number of contacts

3

Rated current

10 A

Rated voltage conductor – ground

230 V

Rated voltage conductor – conductor

400 V

Rated impulse voltage

4 kV

Pollution degree

3

Contact identification, min.

1

Contact identification, max.

3

Wire cross section, min.

0.75 mm2

Wire cross section, max.

1.5 mm2

Wire gauge AWG, min.

AWG 18

Wire gauge AWG, max.

AWG 14

Rated current, alternative

10 A

Rated voltage, alternative

250 V

Rated impulse voltage, alternative

4 kV
