09 20 003 5425 HARTING

Symbol Micros: Z 09200035425
Contractor Symbol:
Case : Rys.09200035425
Technical drawing Add to favourites

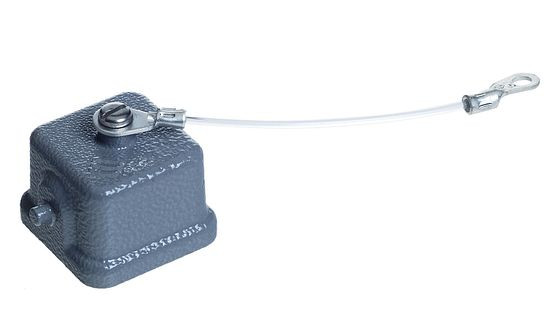

Metal protection cover for latch, size 3A Han
Parameters
Case: Size 3A
Connector: Cover
Series: Han A


Item available on request
Case: Size 3A
Connector: Cover
Series: Han A
Detailed description




Micros Part Number

Z 09200035425

Manufacturer Part Number

09 20 003 5425

RoHS conformity

Yes

Size

3 A

Special style

with securing flex with sealing

Material, locking lever

steel, zinc-plated

Lever type

double locking lever

Type of hood/housing

Protection cover for housings

Type of hood/housing, amendment

for mounted female insert or for mounted Han-Brid® insert metal

Series

Han A®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C
