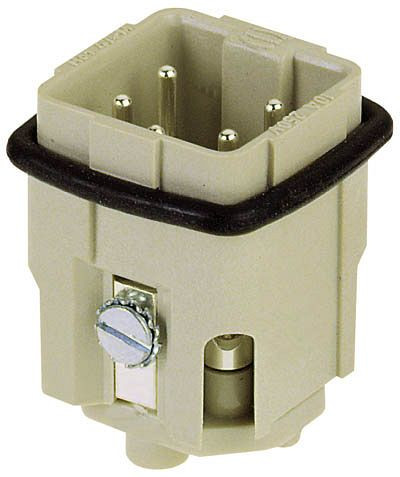

Insert with male contacts HAN A, size 4A
Symbol Micros:
Z 09200042611
Case : Rys.09200042611
4 poles+PE, 10 A 230/400 V 4 kV 3, screw termination
Parameters
| Case: | Size 4A |
| Mounting: | Screw clamps |
| Type of pin configuration: | 4+PE |
| Connector: | Connect pad |
| Series: | Han A |
| Case: | Size 4A |
| Mounting: | Screw clamps |
| Type of pin configuration: | 4+PE |
| Connector: | Connect pad |
| Series: | Han A |
Detailed description
Micros Part Number | Z 09200042611 |
Manufacturer Part Number | 09 20 004 2611 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | 3 A |
Series | Han A® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Screw terminal |
Number of contacts | 4 |
Rated current | 10 A |
Rated voltage conductor – ground | 230 V |
Rated voltage conductor – conductor | 400 V |
Rated impulse voltage | 4 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 4 |
Wire cross section, min. | 0.75 mm2 |
Wire cross section, max. | 1.5 mm2 |
Wire gauge AWG, min. | AWG 18 |
Wire gauge AWG, max. | AWG 14 |
