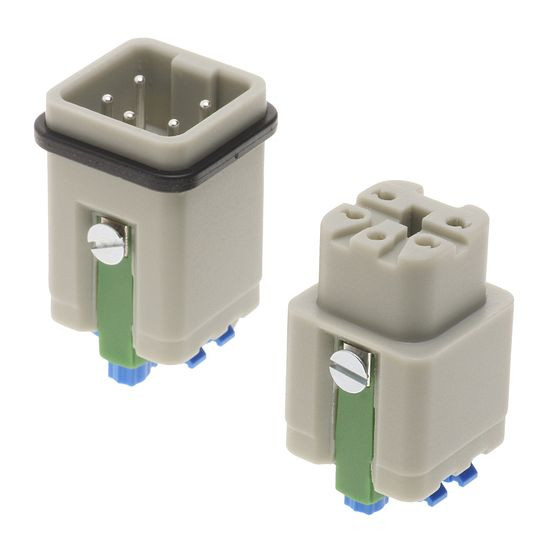

Insert with female contacts HAN A, size 4A

Symbol Micros: Z 09200042733
Contractor Symbol:
Case : Rys.09200042733
4 poles+PE, 16 A 230/400 V 4 kV 3, with Quick-Lock termination
Parameters
Case: Size 4A
Mounting: Quick Lock clamp
Type of pin configuration: 4+PE
Connector: Connect pad
Series: Han A


Item available on request
Case: Size 4A
Mounting: Quick Lock clamp
Type of pin configuration: 4+PE
Connector: Connect pad
Series: Han A
Detailed description




Micros Part Number

Z 09200042733

Manufacturer Part Number

09 20 004 2733

Gender

female

Han-Quick Lock®

Yes

Mechanical working life - mating cycles

>= 500

Size

3 A

Series

Han A®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Han-Quick Lock® termination

Number of contacts

4

Hint

blue slide

Rated current

10 A

Rated voltage conductor – ground

230 V

Rated voltage conductor – conductor

400 V

Rated impulse voltage

4 kV

Pollution degree

3

Core insulation diameter, max.

3.6 mm

Contact identification, min.

1

Contact identification, max.

4

Wire cross section, min.

0,5 mm2

Wire cross section, max.

2,5 mm2
