09 21 007 2632 HARTING
Symbol Micros:
Z 09210072632
Case : Rys.09210072632

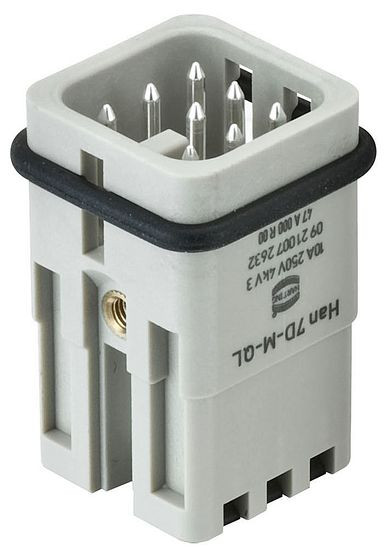

Han 7D-M Quick Lock 22-16 AWG 7+PE, 10A, 250V, snap-on (Quick lock), cross section 0.3-1.5mm2
Parameters
| Type of pin configuration: | 7+PE |
| Case: | Size 3A |
| Series: | Quick Lock |
| Connector: | HDC |
| Type of connector: | Male |
| Type of pin configuration: | 7+PE |
| Case: | Size 3A |
| Series: | Quick Lock |
| Connector: | HDC |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09210072632 |
Manufacturer Part Number | 09 21 007 2632 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Size | 3 A |
Series | Han D® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Han-Quick Lock® termination |
Number of contacts | 7 |
Hint | only for thermoplastic hoods/housings |
Contact resistance | <= 3 mOhm |
Rated current | 10 A |
Rated voltage | 250 V |
Rated impulse voltage | 4 kV |
Pollution degree | 3 |
Core insulation diameter, max. | 3 mm |
Contact identification, min. | 1 |
Contact identification, max. | 7 |
Wire cross section, min. | 0,25 mm2 |
Wire cross section, max. | 1,5 mm2 |
Wire gauge AWG, min. | AWG 24 |
Wire gauge AWG, max. | AWG 16 |
