09 32 000 6108 HARTING
Symbol Micros:
Z 09320006108
Case : Rys.09330006108

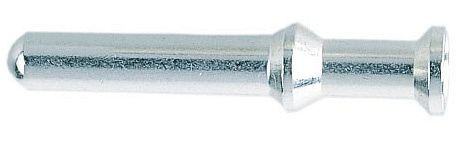

Power contact Han-Com 12/2 + 6/36 silver plated, cross section 6.0 mm2, AWG 10
Parameters
Mounting: | Crimped |
Series: | Han |
Case: | N/A |
Type of pin configuration: | N/A |
Connector: | Contact |
Type of connector: | Male |
Mounting: | Crimped |
Series: | Han |
Case: | N/A |
Type of pin configuration: | N/A |
Connector: | Contact |
Type of connector: | Male |
Detailed description
Micros Part Number | Z 09320006108 |
Manufacturer Part Number | 09 32 000 6108 |
Gender | male |
RoHS conformity | Yes |
Type of contact | Crimp contact |
Series | Han® C |
Contact resistance | <= 1 mOhm |
Rated current | 40 A |
Stripping length HV, max. | 13 mm |
Wire cross section | 6 mm2 |
Wire gauge AWG | AWG 10 |
Stripping length | 9,6 mm |
