09 32 000 6209 HARTING
Symbol Micros:
Z 09320006209
Case : Rys.09330006209

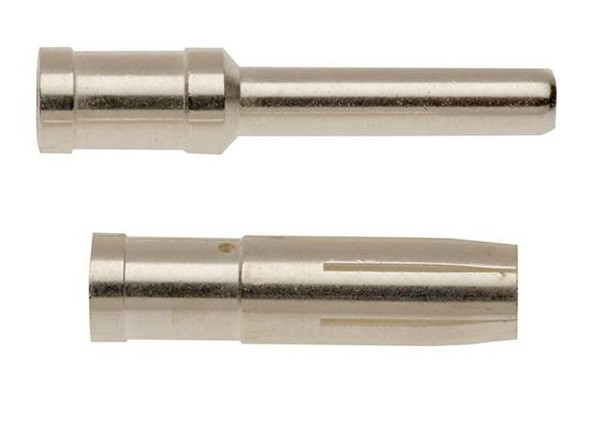

Power contact Han-Com 12/2 + 6/36 silver plated, cross section 10.0 mm2, AWG 8
Parameters
| Mounting: | Crimped |
| Series: | Han |
| Case: | N/A |
| Connector: | Contact |
| Type of connector: | Female |
| Type of pin configuration: | N/A |
| Mounting: | Crimped |
| Series: | Han |
| Case: | N/A |
| Connector: | Contact |
| Type of connector: | Female |
| Type of pin configuration: | N/A |
Detailed description
Micros Part Number | Z 09320006209 |
Manufacturer Part Number | 09 32 000 6209 |
Gender | female |
RoHS conformity | Yes |
Type of contact | Crimp contact |
Series | Han® C |
Contact resistance | <= 1 mOhm |
Rated current | 40 A |
Stripping length HV, max. | 13 mm |
Wire cross section | 10 mm2 |
Wire gauge AWG | AWG 8 |
Stripping length | 15 mm |
