09 32 040 3001 HARTING
Symbol Micros:
Z 09320403001
Case : Rys.09320403001

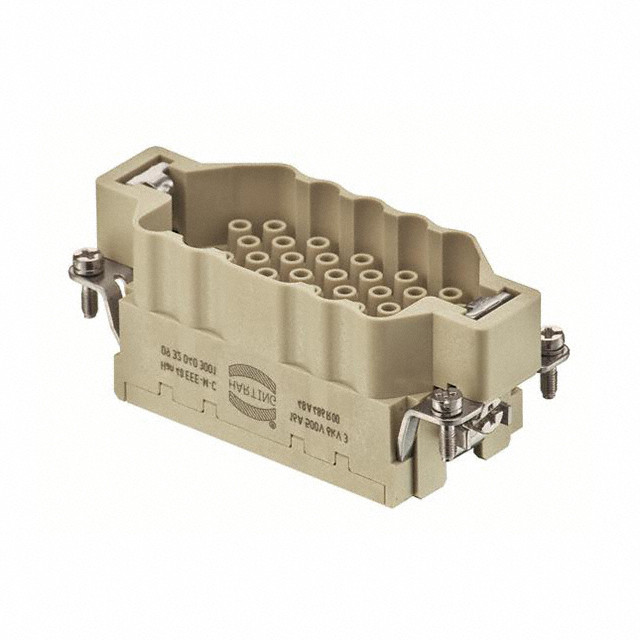

Insert with male contacts HAN EEE, size 16B 40 poles+PE, 16 A 500 V 6 kV 3, crimp termination, contacts order separately
Parameters
| Mounting: | Clamping |
| Series: | Han EEE |
| Case: | Size 16B |
| Type of pin configuration: | 40+PE |
| Connector: | Connect pad |
| Type of connector: | Male |
| Mounting: | Clamping |
| Series: | Han EEE |
| Case: | Size 16B |
| Type of pin configuration: | 40+PE |
| Connector: | Connect pad |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09320403001 |
Manufacturer Part Number | 09 32 040 3001 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Size | 16 B |
Series | Han® EEE |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 40 |
Hint | Please order crimp contacts separately. |
Rated current | 16 A |
Rated voltage | 500 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 40 |
