09 33 006 4726 HARTING
Symbol Micros:
Z 09330064726
Case : Rys.09330064726

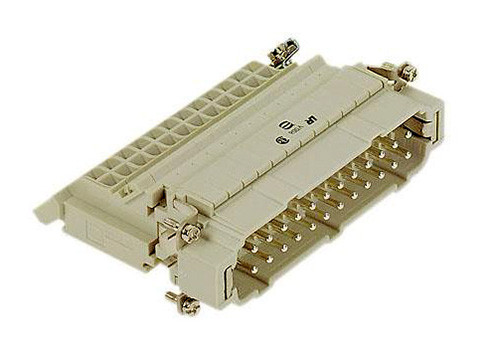

Insert with female contacts HAN E, size 6B 6 poles+PE, 16 A 500 V 6 kV 3, crimp termination
Parameters
| Mounting: | Clamping |
| Series: | Han E |
| Case: | Size 6B |
| Type of pin configuration: | 6+PE |
| Connector: | Connect pad |
| Type of connector: | Male |
| Mounting: | Clamping |
| Series: | Han E |
| Case: | Size 6B |
| Type of pin configuration: | 6+PE |
| Connector: | Connect pad |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09330064726 |
Manufacturer Part Number | 09 33 006 4726 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
Size | 6 B |
Test voltage | 3 kV |
Type | Left hand version |
Outline | Single contour (SK) |
Series | Terminal Block Connectors |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Screw terminal |
Number of contacts | 6 |
Contact resistance | <= 4 mOhm |
Rated current | 16 A |
Rated voltage | 500 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 6 |
Wire cross section, min. | 0,2 mm2 |
Wire cross section, max. | 2,5 mm2 |
Wire gauge AWG, min. | AWG 24 |
Wire gauge AWG, max. | AWG 14 |
