09 33 024 2611 HARTING

Micros part number: Z 09330242611
Package: Rys.09330242611

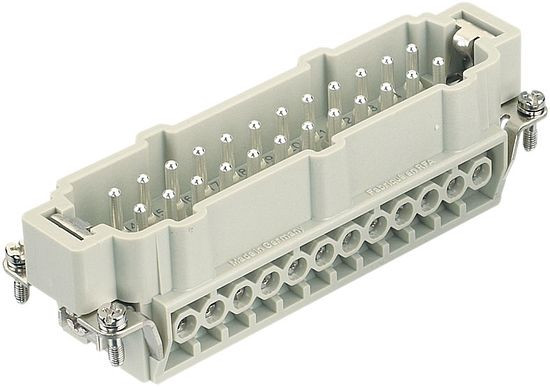

Insert with male contacts HAN E, size 48B (2x24B) 24 poles+PE, 16 A 500 V 6 kV 3, cage clamp type, pins marked 25-48


Pozycja dostępna na zamówienie
Detailed description



Micros Part Number

Z 09330242611

Manufacturer Part Number

09 33 024 2611

Gender

male

Mechanical working life - mating cycles

>= 500

RoHS conformity

Yes

Size

24 B

Series

Han E®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Screw terminal

Wire protection

Yes

Number of contacts

24

Contact resistance

<= 1 mOhm

Rated current

16 A

Rated voltage

500 V

Rated impulse voltage

6 kV

Pollution degree

3

Contact identification, min.

25

Contact identification, max.

48

Wire cross section, min.

0,75 mm2

Wire cross section, max.

2,5 mm2

Wire gauge AWG, min.

AWG 26

Wire gauge AWG, max.

AWG 14
