09 33 024 2711 HARTING
Symbol Micros:
Z 09330242711
Case : Rys.09330242711

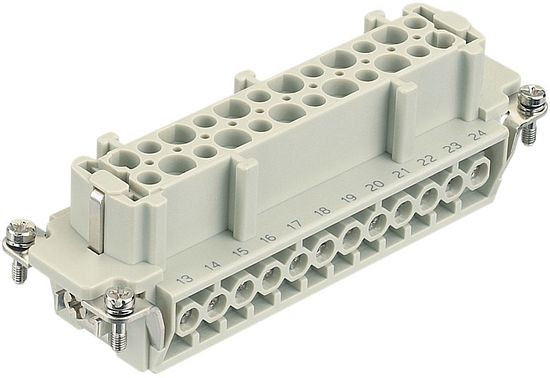

Insert with female contacts HAN E, size 48B (2x24B) 24 poles+PE, 16 A 500 V 6 kV 3, cage clamp type, pins marked 25-48
Parameters
| Mounting: | Screw clamp |
| Series: | Han E |
| Case: | Size 48B |
| Type of pin configuration: | 24+PE |
| Connector: | Connect pad |
| Type of connector: | Female |
| Mounting: | Screw clamp |
| Series: | Han E |
| Case: | Size 48B |
| Type of pin configuration: | 24+PE |
| Connector: | Connect pad |
| Type of connector: | Female |
Detailed description
Micros Part Number | Z 09330242711 |
Manufacturer Part Number | 09 33 024 2711 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | 24 B |
Series | Han E® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Screw terminal |
Wire protection | Yes |
Number of contacts | 24 |
Contact resistance | <= 1 mOhm |
Rated current | 16 A |
Rated voltage | 500 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 25 |
Contact identification, max. | 48 |
Wire cross section, min. | 0,75 mm2 |
Wire cross section, max. | 2,5 mm2 |
Wire gauge AWG, min. | AWG 26 |
Wire gauge AWG, max. | AWG 14 |
