09 45 195 1560 HARTING
Symbol Micros:
Z 09451951560
Case : Rys.09451951560

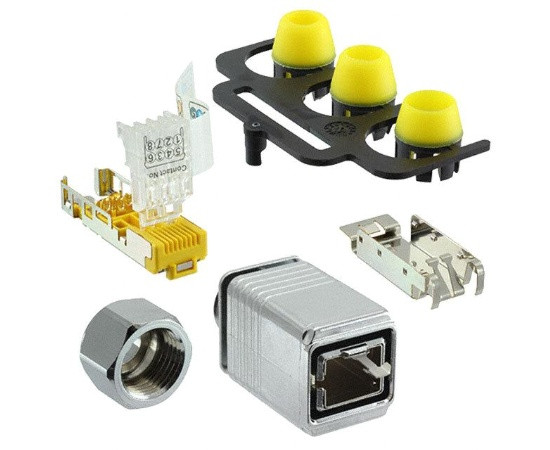

HARTING PushPull RJ45 10G connector, metal Cat 6E for 1G/10G Ethernet, IP65/67,oper.temp.-40C +70C, wire diam. 4.9-8.6mm
Detailed description
Micros Part Number | Z 09451951560 |
Manufacturer Part Number | 09 45 195 1560 |
Application | 1/10GBit Ethernet, 10/100Mbit Ethernet |
Cable diameter | 4,9 - 8,6 mm |
Class of Protection | IP65 / IP67 |
Gender | Plug |
Mating face | RJ45 |
RoHS conformity | Yes |
Termination Type | IDC |
Type | RJ45 / Cat.6 |
Limiting temperature, min. | -25 °C |
Limiting temperature, max. | 70 °C |
Number of contacts | 8 |
Current | 1,5 A |
Rated voltage | 125 V AC |
Wire cross section | AWG 27-22 stranded; AWG 24-22 solid |
