10129379-902004BLF AMPHENOL

Symbol Micros: Z 10129379-902004BLF

346339

Z 10129379-902004BLF

Contractor Symbol:

Case : Rys.10129379-902004BLF

Datasheet

Technical drawing Add to favourites

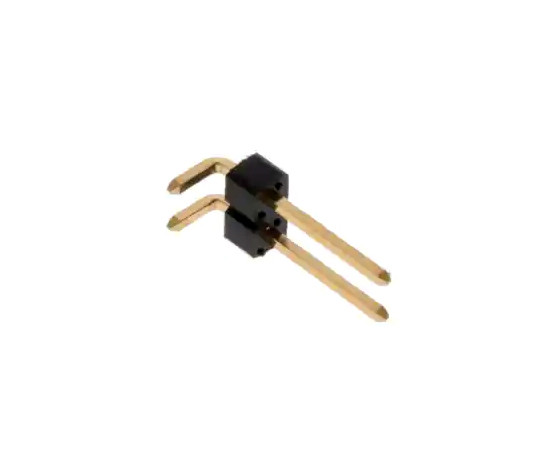

pin header single row 1x02pin, angled, r. 2.54mm, THT, EconoStik series, F=8,08mm / G=2,29mm / H=1,52mm

Parameters

Type of pin configuration:	1x02
Number of pins:	2
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	1x02
Number of pins:	2
Type of connector:	Plug
Connector:	Pin strip
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
