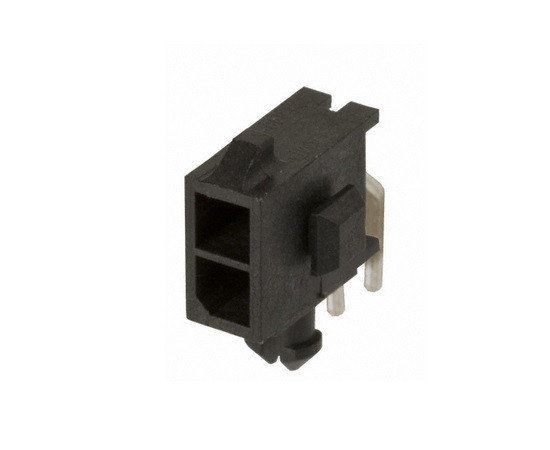

3-794618-2 TE CONNECTIVITY

Symbol Micros: Z 3-794618-2

456328

Z 3-794618-2

Contractor Symbol:

Case : Rys.3-794618-2

Datasheet

Technical drawing Add to favourites

Micro MATE-N-LOK 3 mm Connector Header System

Parameters

Number of pins:	2
Manufacturer:	TE Connectivity
Mounting:	THT
Spatial orientation:	Angled
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	3mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2
Manufacturer:	TE Connectivity
Mounting:	THT
Spatial orientation:	Angled
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	3mm
