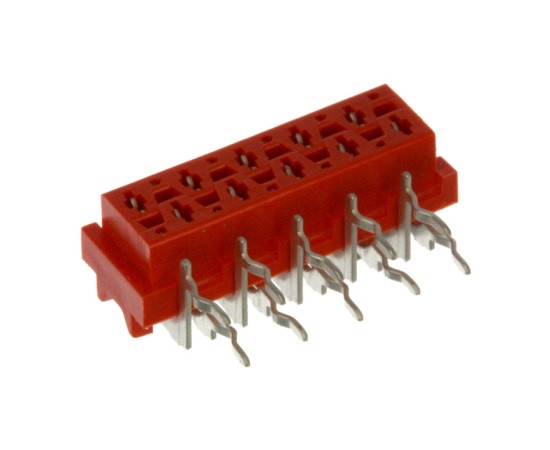

8-215460-0 TE CONNECTIVITY

Symbol Micros: Z 8-215460-0

470526

Z 8-215460-0

Contractor Symbol:

Case : Rys.8-215460-0

Datasheet

Add to favourites

Conn Board to Board F 10 POS 1.27mm Solder RA Side Entry Thru-Hole Box/Carton

Parameters

Number of pins:	16
Type of pin configuration:	2x5
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Angled
Type of connector:	Female

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	16
Type of pin configuration:	2x5
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Angled
Type of connector:	Female
