DS1093-05-BN46X CONNFLY

Symbol Micros: Z 808md4

65481

Z 808md4

Contractor Symbol:

Case : Rys.808md4

Datasheet

Technical drawing Add to favourites

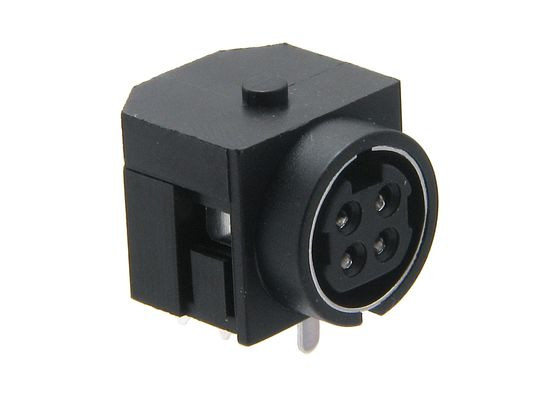

socket MINI-DIN 4 pin, angled, PCB, plastic housing, gold plating 30V DC, 1A / pin, oper. temp. -20C~+80C

Parameters

Number of pins:	4
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1093-05-BN40X RoHS Case style: Rys.808md4

In stock:

274 pcs.

Quantity of pcs.	2+	5+	10+	30+	100+
Net price (EUR)	0,5480	0,3890	0,3155	0,2515	0,2187

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/900 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1093-05-BN46X RoHS Case style: Rys.808md4

In stock:

1000 pcs.

Quantity of pcs.	2+	15+	100+	300+	1000+
Net price (EUR)	0,5124	0,2847	0,2242	0,2114	0,2047

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1093-05-BN46X Case style: Rys.808md4

External warehouse:

1000 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2187

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	4
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Female
