9-215079-0 TE CONNECTIVITY

Symbol Micros: Z 9-215079-0

472118

Z 9-215079-0

Contractor Symbol:

Case : Rys.9-215079-0

Datasheet

Add to favourites

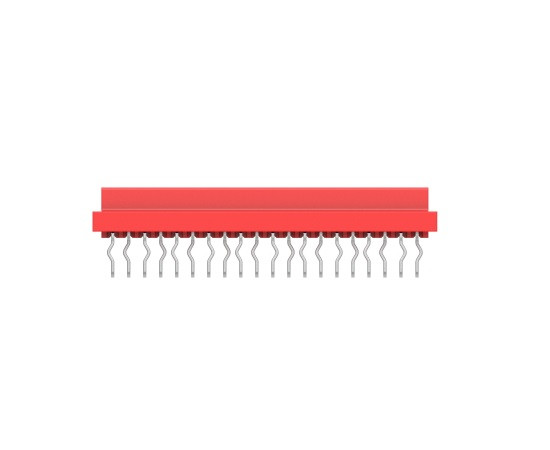

Conn Micro Socket Strip SKT 20 POS 1.27mm Solder ST Top Entry Thru-Hole Box/Carton

Parameters

Number of pins:	20
Type of pin configuration:	2x10
Mounting:	THT
Connector:	Socket
Current:	1,5A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	20
Type of pin configuration:	2x10
Mounting:	THT
Connector:	Socket
Current:	1,5A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Female
