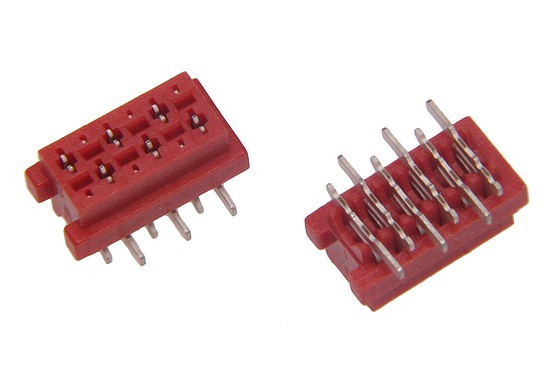

C3131-06PYNTR0R HSM Socket "Micro-Match"

Symbol Micros: Z AMP188275-06

28210

Z AMP188275-06

Contractor Symbol:

Case : Rys.AMP-7-188275-6

Datasheet

Technical drawing Add to favourites

Female, 6pin straight , for SMD, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-188275-6

Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	SMD
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	SMD
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Female
