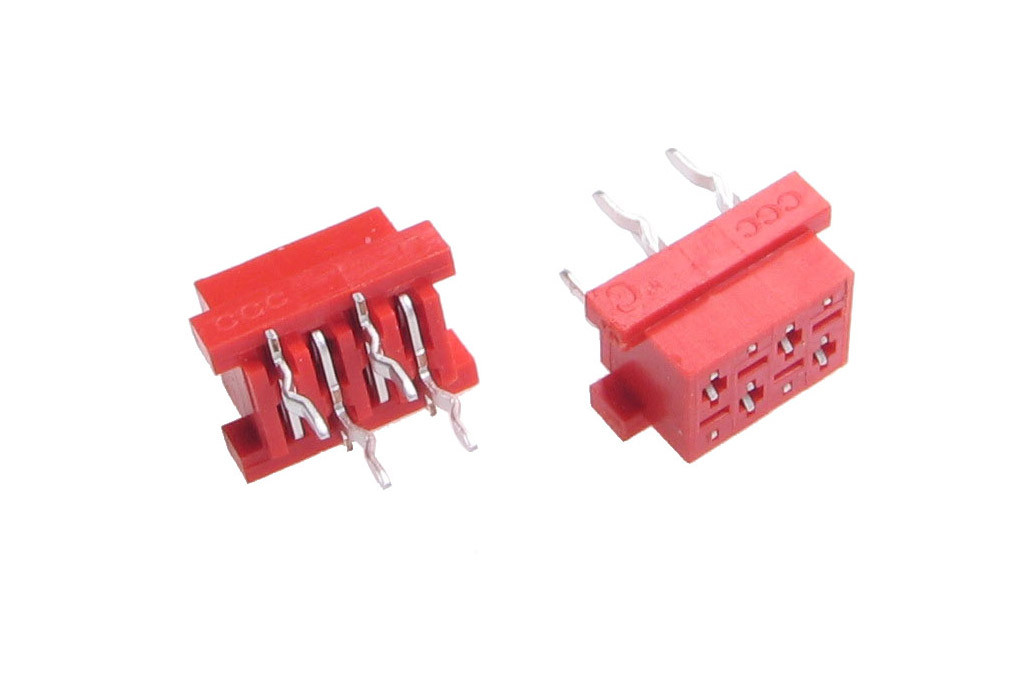

C3128-04PNNTR0R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215079-04

9337

Z AMP215079-04

Contractor Symbol:

Case : Rys.AMP-7-215079-4

Datasheet

Technical drawing Add to favourites

Female, 4pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215079-4

Parameters

Number of pins:	4
Type of pin configuration:	2x2
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-7-215079-4

In stock:

300 pcs.

Quantity of pcs.	3+	10+	50+	300+	1500+
Net price (EUR)	0,3839	0,2520	0,1806	0,1547	0,1472

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-7-215079-4

In stock:

521 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3650	0,2021	0,1594	0,1448	0,1401

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Type of pin configuration:	2x2
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Female
