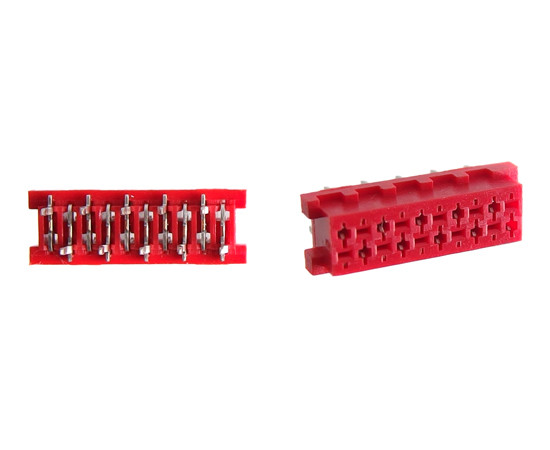

DS1015-04-10R6XB CONNFLY Socket "Micro-Match"

Symbol Micros: Z AMP215079-10-C

67863

Z AMP215079-10-C

Contractor Symbol:

Case : Rys.AMP-8-215079-0C

Datasheet

Technical drawing Add to favourites

Female, 10pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215079-0

Parameters

Number of pins:	10
Type of pin configuration:	2x5
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-04-10R6XB RoHS Case style: Rys.AMP-8-215079-0C Datasheet

In stock:

10642 pcs.

Quantity of pcs.	2+	10+	39+	195+	780+
Net price (EUR)	0,6359	0,4019	0,3262	0,2884	0,2766

Add to comparison tool Add inquiry (RFQ)

Packaging:
39/780 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-04-10R6XB Case style: Rys.AMP-8-215079-0C

External warehouse:

8970 pcs.

Quantity of pcs.	39+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2766

Add to comparison tool Add inquiry (RFQ)

Packaging:
39

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	10
Type of pin configuration:	2x5
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Female
