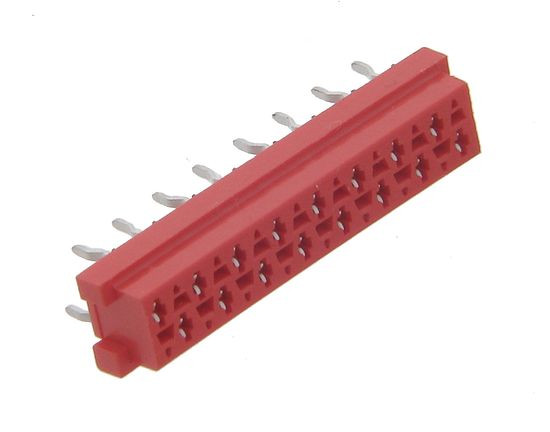

1-215079-6 TE CONNECTIVITY Socket "Micro-Match"
![1-215079-6 TE CONNECTIVITY Socket "Micro-Match"](/gfx/micros/_thumbsms/mediaserver/af/12/c0/af12c0227263dd097e321e415d0930c3,k1OYgqWca2VXmdiQiHtf.jpg "1-215079-6 TE CONNECTIVITY Socket "Micro-Match"")
Symbol Micros:
Z AMP215079-16
Case : Rys.AMP-8-215079-6
Female, 16pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215079-6
Parameters
| Number of pins: | 16 |
| Type of pin configuration: | 2x8 |
| Mounting: | THT |
| Connector: | Socket |
| Spatial orientation: | Straight |
| Type of connector: | Female |
| Current: | 1A |
| Number of pins: | 16 |
| Type of pin configuration: | 2x8 |
| Mounting: | THT |
| Connector: | Socket |
| Spatial orientation: | Straight |
| Type of connector: | Female |
| Current: | 1A |
| Operating voltage: | 100V |
