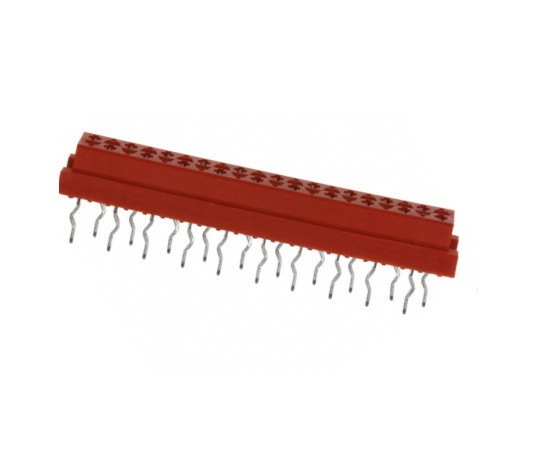

9-215079-0 TE CONNECTIVITY Socket "Micro-Match"

Symbol Micros: Z AMP215079-20

20868

Z AMP215079-20

Contractor Symbol:

Case : Rys.AMP-9-215079-0

Datasheet

Add to favourites

Female, 20pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-9-215079-0

Parameters

Number of pins:	20
Type of pin configuration:	2x10
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 9-215079-0 Case style: Rys.AMP-9-215079-0

External warehouse:

31818 pcs.

Quantity of pcs.	1250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,1168

Add inquiry (RFQ)

Packaging:
1250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 9-215079-0 Case style: Rys.AMP-9-215079-0

External warehouse:

3000 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,4605

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	20
Type of pin configuration:	2x10
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Female
