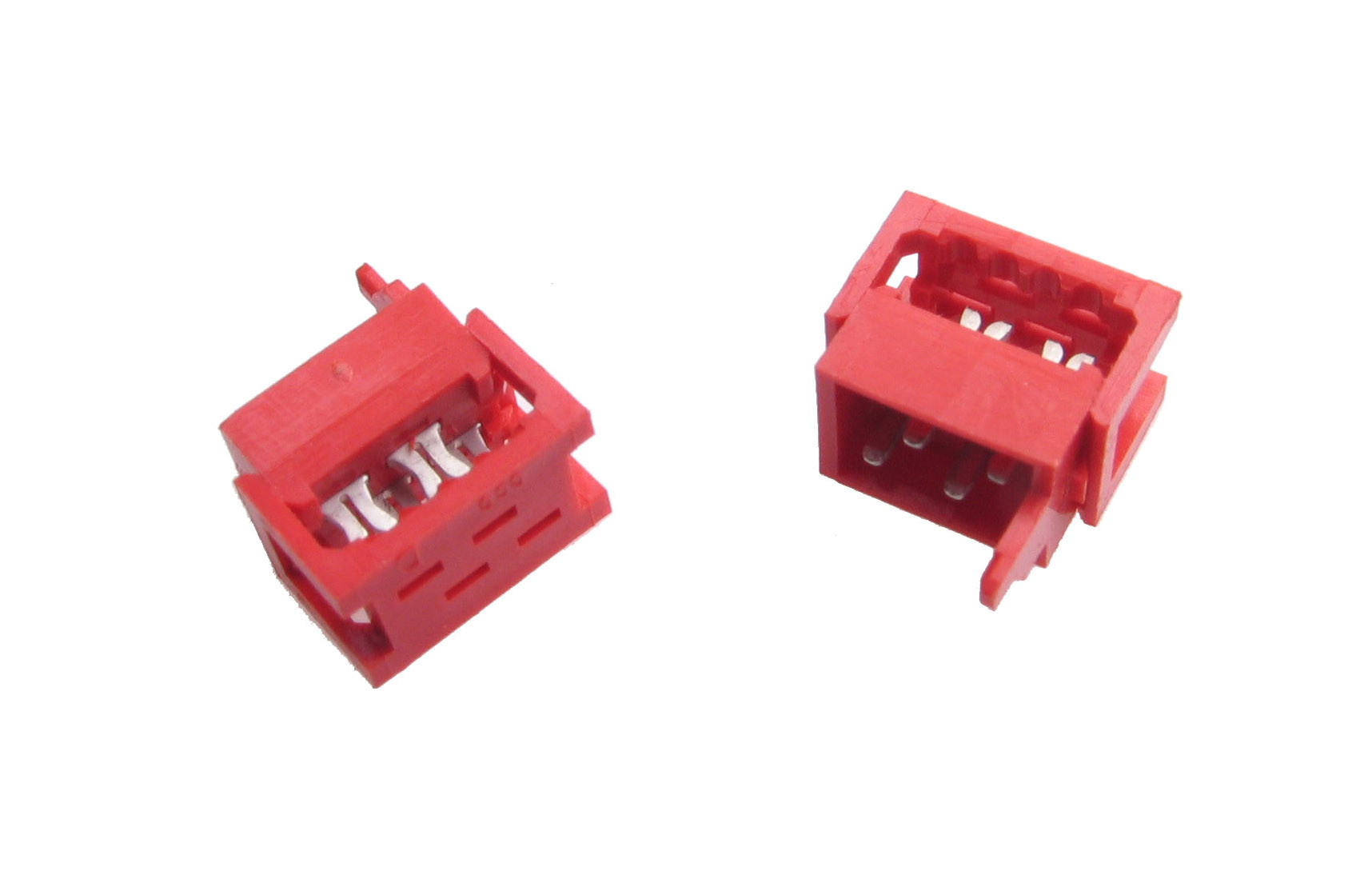

C3127-04PTR000R HSM Plug "Micro-Match"

Symbol Micros: Z AMP215083-04

9336

Z AMP215083-04

Contractor Symbol:

Case : Rys.AMP-7-215083-4

Datasheet

Technical drawing Add to favourites

Male, 4pin to ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215083-4

Parameters

Number of pins:	4
Type of pin configuration:	2x2
Mounting:	Tape mounting
Connector:	Plug
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-7-215083-4

In stock:

1172 pcs.

Quantity of pcs.	3+	10+	50+	200+	800+
Net price (EUR)	0,3818	0,2498	0,1782	0,1555	0,1466

Add to comparison tool Add inquiry (RFQ)

Packaging:
800/4000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Type of pin configuration:	2x2
Mounting:	Tape mounting
Connector:	Plug
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
