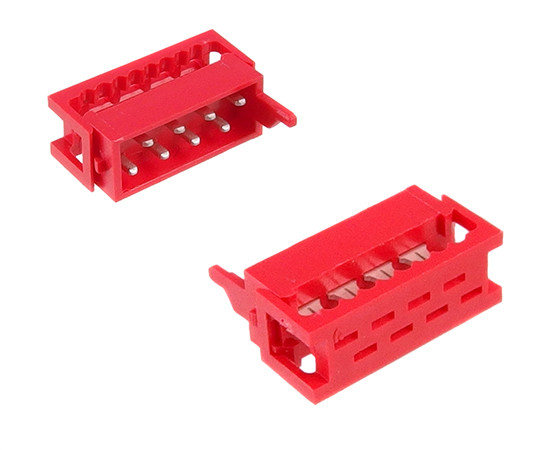

DS1015-01-08R6 CONNFLY Plug "Micro-Match"

Symbol Micros: Z AMP215083-08-C

67849

Z AMP215083-08-C

Contractor Symbol:

Case : Rys.AMP-7-215083-8C

Datasheet

Technical drawing Add to favourites

Male, 8pin to ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215083-8

Parameters

Number of pins:	8
Type of pin configuration:	2x4
Mounting:	Tape mounting
Connector:	Plug
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-01-08R6 RoHS Case style: Rys.AMP-7-215083-8C Datasheet

In stock:

5448 pcs.

Quantity of pcs.	3+	10+	44+	220+	880+
Net price (EUR)	0,3849	0,2518	0,1839	0,1568	0,1482

Add to comparison tool Add inquiry (RFQ)

Packaging:
44/880 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-01-08R6 Case style: Rys.AMP-7-215083-8C

External warehouse:

12320 pcs.

Quantity of pcs.	44+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1482

Add to comparison tool Add inquiry (RFQ)

Packaging:
44

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	8
Type of pin configuration:	2x4
Mounting:	Tape mounting
Connector:	Plug
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
