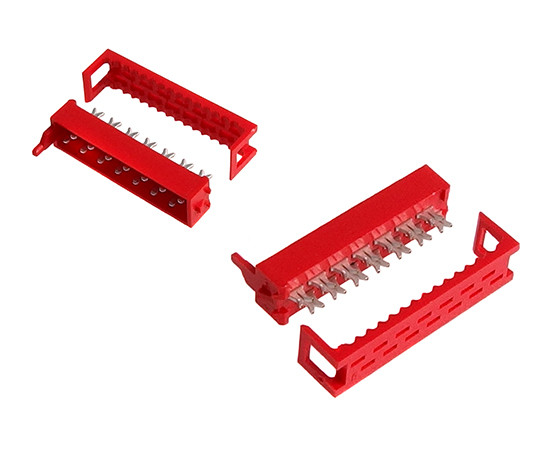

DS1015-01-14R6 CONNFLY Plug "Micro-Match"

Symbol Micros: Z AMP215083-14-C

67852

Z AMP215083-14-C

Contractor Symbol:

Case : Rys.AMP-8-215083-4C

Datasheet

Technical drawing Add to favourites

Male, 14pin to ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215083-4

Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	Tape mounting
Connector:	Plug
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1015-01-14R6 RoHS Case style: Rys.AMP-8-215083-4C

In stock:

495 pcs.

Quantity of pcs.	2+	10+	28+	140+	560+
Net price (EUR)	0,5435	0,3426	0,2883	0,2481	0,2363

Add to comparison tool Add inquiry (RFQ)

Packaging:
28/560/1680 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-01-14R6 Case style: Rys.AMP-8-215083-4C

External warehouse:

3000 pcs.

Quantity of pcs.	28+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2363

Add to comparison tool Add inquiry (RFQ)

Packaging:
28

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	Tape mounting
Connector:	Plug
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
