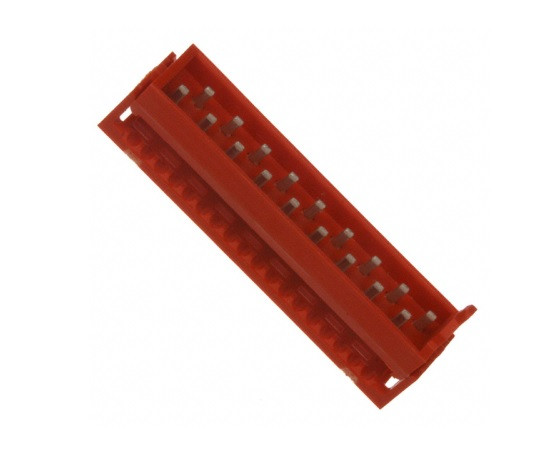

8-215083-8 TE CONNECTIVITY Plug "Micro-Match"

Symbol Micros: Z AMP215083-18

47694

Z AMP215083-18

Contractor Symbol:

Case : Rys.AMP-8-215083-8

Datasheet

Add to favourites

Male, 18pin to ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215083-8

Parameters

Number of pins:	18
Type of pin configuration:	2x9
Mounting:	Tape mounting
Connector:	Plug
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-215083-8 Case style: Rys.AMP-8-215083-8

External warehouse:

5000 pcs.

Quantity of pcs.	1250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,7419

Add inquiry (RFQ)

Packaging:
1250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	18
Type of pin configuration:	2x9
Mounting:	Tape mounting
Connector:	Plug
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
Current:	1A
