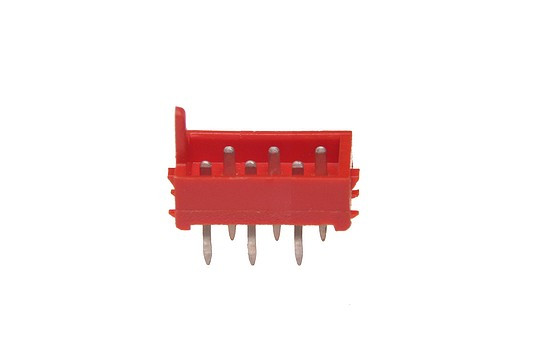

C3130-06PTR000R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215464-06

18741

Z AMP215464-06

Contractor Symbol:

Case : Rys.AMP-7-215464-6

Datasheet

Technical drawing Add to favourites

Male, 6pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215464-6

Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-7-215464-6

In stock:

19 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5466	0,3308	0,2534	0,2292	0,2182

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-10

Quantity of pcs.: 500

• Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
