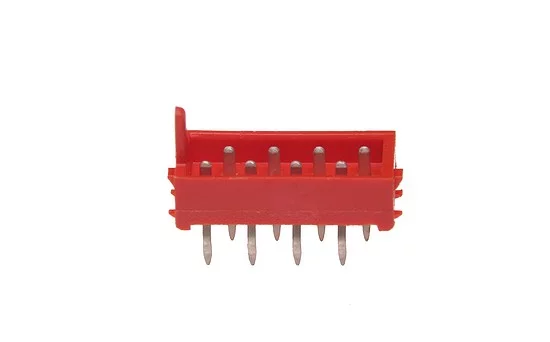

C3130-08PTR000R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215464-08

20876

Z AMP215464-08

Contractor Symbol:

Case : Rys.AMP-7-215464-8

Datasheet

Technical drawing Add to favourites

Male, 8pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215464-8

Parameters

Number of pins:	8
Type of pin configuration:	2x4
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-7-215464-8

In stock:

200 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,6847	0,4297	0,3376	0,3069	0,2975

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Type of pin configuration:	2x4
Mounting:	THT
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
