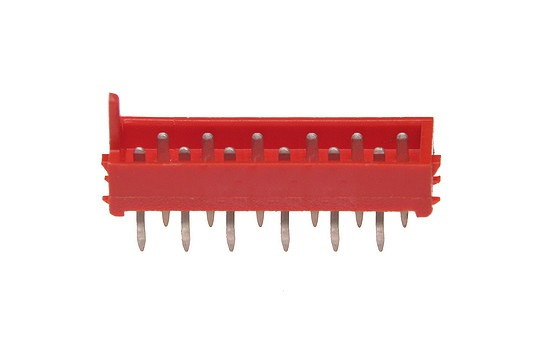

C3130-12PTR000R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215464-12

20877

Z AMP215464-12

Contractor Symbol:

Case : Rys.AMP-8-215464-2

Datasheet

Technical drawing Add to favourites

Male, 12pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215464-2

Parameters

Number of pins:	12
Type of pin configuration:	2x6
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-8-215464-2

In stock:

600 pcs.

Quantity of pcs.	2+	10+	50+	225+	600+
Net price (EUR)	0,8847	0,5585	0,4389	0,3966	0,3849

Add to comparison tool Add inquiry (RFQ)

Packaging:
225/600 Quantity (multiple: 1)

- +

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-215464-2 Case style: Rys.AMP-8-215464-2

External warehouse:

1000 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0623

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	12
Type of pin configuration:	2x6
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
Current:	1A
