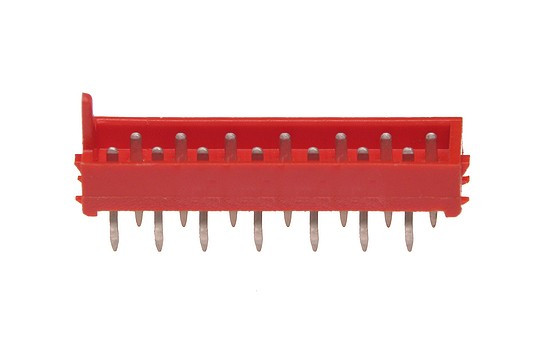

C3130-14PTR000R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215464-14

20878

Z AMP215464-14

Contractor Symbol:

Case : Rys.AMP-8-215464-4

Datasheet

Technical drawing Add to favourites

Male, 14pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215464-4

Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-8-215464-4

In stock:

195 pcs.

Quantity of pcs.	2+	10+	40+	195+	1000+
Net price (EUR)	0,6655	0,4209	0,3410	0,3034	0,2892

Add to comparison tool Add inquiry (RFQ)

Packaging:
195/1000 Quantity (multiple: 1)

- +

Manufacturer:: AMTEK Manufacturer part number:   Case style: Rys.AMP-8-215464-4

In stock:

0 pcs.

Quantity of pcs.	2+	10+	28+	112+	440+
Net price (EUR)	0,6537	0,4115	0,3457	0,3034	0,2845

Add to comparison tool Add inquiry (RFQ)

Packaging:
28/440 Quantity (multiple: 1)

- +

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-215464-4 Case style: Rys.AMP-8-215464-4

External warehouse:

2699 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,9750

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
Current:	1A
