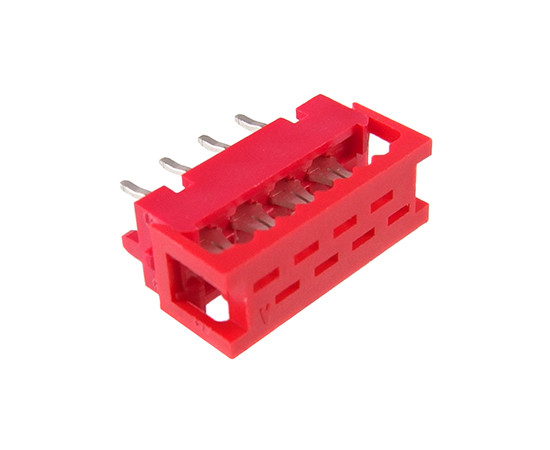

DS1015-02-08R6 CONNFLY Adapter "Micro-Match"

Symbol Micros: Z AMP215570-08-C

67858

Z AMP215570-08-C

Contractor Symbol:

Case : Rys.AMP-7-215570-8C

Datasheet

Technical drawing Add to favourites

Male,8pin connector for ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215570-8

Parameters

Number of pins:	8
Type of pin configuration:	2x4
Mounting:	Tape mounting, PCB
Connector:	Adapter
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-02-08R6 RoHS Case style: Rys.AMP-7-215570-8C Datasheet

In stock:

630 pcs.

Quantity of pcs.	3+	10+	45+	180+	630+
Net price (EUR)	0,4060	0,2643	0,1912	0,1655	0,1558

Add to comparison tool Add inquiry (RFQ)

Packaging:
45/630 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-02-08R6 Case style: Rys.AMP-7-215570-8C

External warehouse:

2370 pcs.

Quantity of pcs.	45+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1558

Add to comparison tool Add inquiry (RFQ)

Packaging:
45

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	8
Type of pin configuration:	2x4
Mounting:	Tape mounting, PCB
Connector:	Adapter
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
