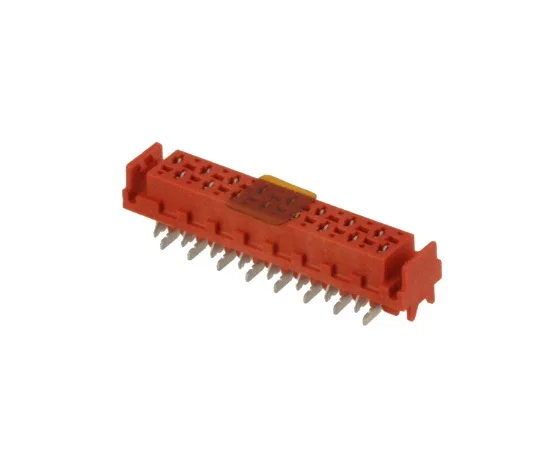

8-338069-6 TE-CONNECTIVITY Socket "Micro-Match"

Symbol Micros: Z AMP338069-16

120573

Z AMP338069-16

Contractor Symbol:

Case : Rys.AMP338069-16

Datasheet

Add to favourites

Female, 16pin straight , for SMD, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. 8-338069-6

Parameters

Number of pins:	16
Type of pin configuration:	2x8
Mounting:	SMD
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-338069-6 Case style: Rys.AMP338069-16

External warehouse:

5400 pcs.

Quantity of pcs.	900+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,2359

Add to comparison tool Add inquiry (RFQ)

Packaging:
900

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-338069-6 Case style: Rys.AMP338069-16

External warehouse:

21600 pcs.

Quantity of pcs.	900+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,4326

Add to comparison tool Add inquiry (RFQ)

Packaging:
900

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	16
Type of pin configuration:	2x8
Mounting:	SMD
Connector:	Socket
Current:	1A
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Female
