B2B-PH-SM4-TBT (LF)(SN) JST

Symbol Micros: Z B2B-PH-SM4-TBT

479079

Z B2B-PH-SM4-TBT

Contractor Symbol:

Case : Rys.B2B-PH-SM4-TBT

Datasheet

Technical drawing Add to favourites

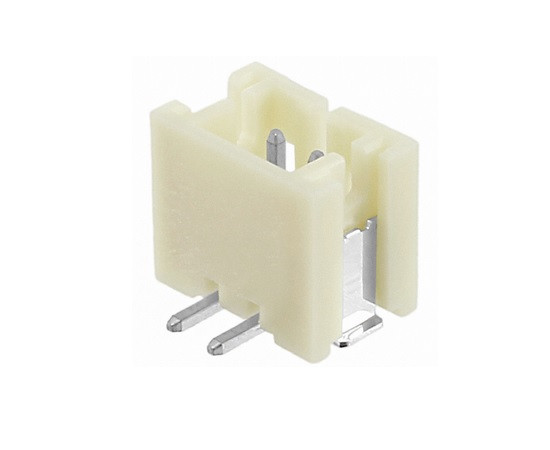

Conn Shrouded Header HDR 2 POS 2mm Solder ST Top Entry SMD T/R

Parameters

Number of pins:	2
Manufacturer:	JST
Current:	2A
Operating voltage:	100V
Mounting:	SMD
Spatial orientation:	Vertical
Connector:	Socket

All parameters

Manufacturer:: Japan Science and Technology Manufacturer part number: B2B-PH-SM4-TBT (LF)(SN) RoHS Case style: Rys.B2B-PH-SM4-TBT Datasheet

In stock:

50 pcs.

Quantity of pcs.	2+	10+	50+	200+	600+
Net price (EUR)	0,6354	0,4012	0,3154	0,2852	0,2760

Add to comparison tool Add inquiry (RFQ)

Packaging:
600 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	2
Manufacturer:	JST
Current:	2A
Operating voltage:	100V
Mounting:	SMD
Spatial orientation:	Vertical
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
