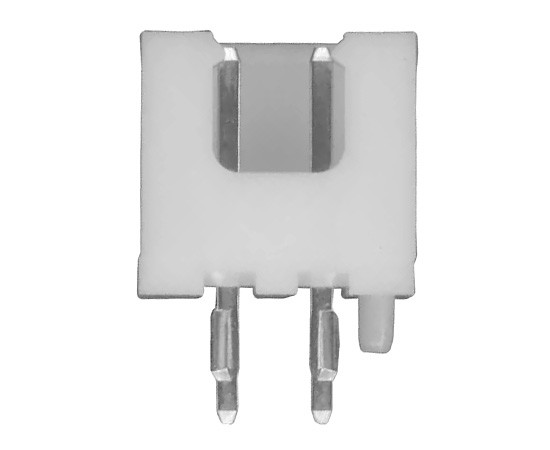

B2B-XH-A JST Cable connector

Symbol Micros: Z B2B-XH-A

66943

Z B2B-XH-A

Contractor Symbol:

Case : Rys.B2B-XH-A

Datasheet

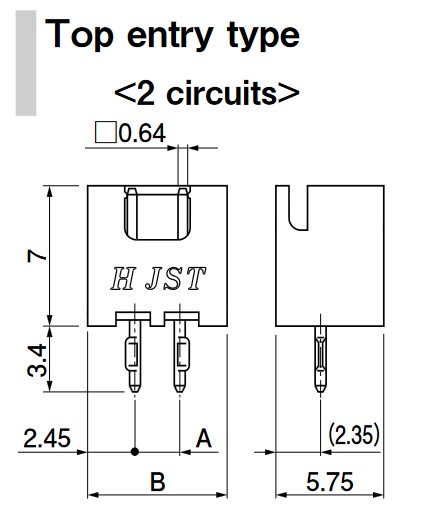

Technical drawing Add to favourites

Connector Header Through Hole 2 position 0.098" (2.50mm); vertical

Parameters

Number of pins:	2
Manufacturer:	JST
Current:	3A
Mounting:	THT
Spatial orientation:	Straight
Connector:	Socket
Operating voltage:	250V

All parameters

Manufacturer:: Japan Science and Technology Manufacturer part number: B2B-XH-A(LF)(SN) Case style: Rys.B2B-XH-A

External warehouse:

3000 pcs.

Quantity of pcs.	1000+ (Please wait for the order confirmation)
Net price (EUR)	0,0318

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: Japan Science and Technology Manufacturer part number: B2B-XH-A (LF)(SN) Case style: Rys.B2B-XH-A

External warehouse:

290845 pcs.

Quantity of pcs.	4000+ (Please wait for the order confirmation)
Net price (EUR)	0,0289

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	2
Manufacturer:	JST
Current:	3A
Mounting:	THT
Spatial orientation:	Straight
Connector:	Socket
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [mm]:	2,5mm
