GX12-5(GX12K5P+GX12J5Z) DAFA LINKER

Symbol Micros: Z C01/05

45413

Z C01/05

Contractor Symbol:

Case : Rys.C01/05

Datasheet

Technical drawing Add to favourites

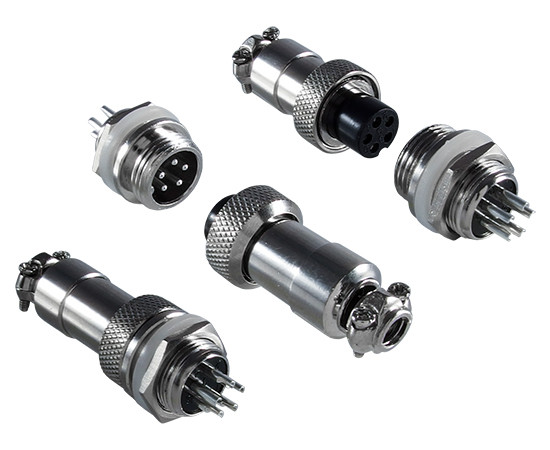

Set: jack for soldering wires & plug on the panel C01 5pin black insulator, length 43.6mm, pin diameter 1.5mm

Parameters

Number of pins:	5
Current:	5A
Operating voltage:	125V
Manufacturer:	DAFA LINKER
Connector:	Socket + plug
Mounting:	On panel
Type of connector:	Female+male

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-04-20

Quantity of pcs.: 500

• Parameters

Number of pins:	5
Current:	5A
Operating voltage:	125V
Manufacturer:	DAFA LINKER
Connector:	Socket + plug
Mounting:	On panel
Type of connector:	Female+male
