Z C03/04Z

Symbol Micros: Z C03/04Z

126522

Z C03/04Z

Contractor Symbol:

Case : Rys.C03/04

Datasheet

Technical drawing Add to favourites

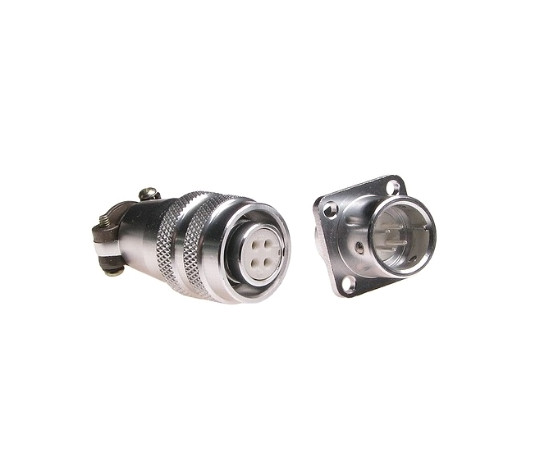

Set: jack for soldering wires & plug on the panel C03 4pin white insulator, length 50.15mm, pin diameter 2.5mm

Parameters

Number of pins:	4
Manufacturer:	CONNFLY
Mounting:	On panel
Connector:	Socket + plug
Type of connector:	Female+male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	4
Manufacturer:	CONNFLY
Mounting:	On panel
Connector:	Socket + plug
Type of connector:	Female+male
