DS1110-9B6 CONNFLY

Symbol Micros: Z C091/09

23059

Z C091/09

Contractor Symbol:

Case : Rys.C091/09

Datasheet

Technical drawing Add to favourites

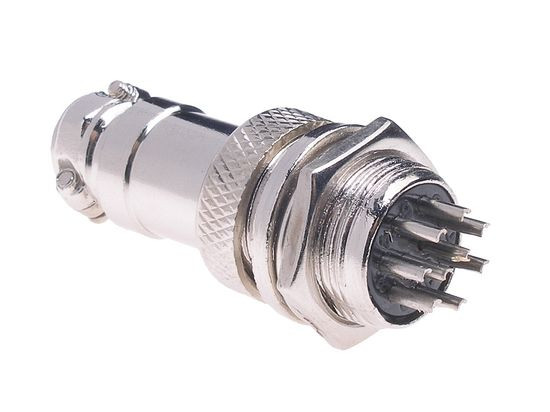

Set: jack for soldering wires & plug on the panel C091 9pin black insulator, length 46.6mm, pin diameter 2.5mm, mounting hole 16mm

Parameters

Number of pins:	9
Manufacturer:	CONNFLY
Connector:	Socket + plug
Mounting:	On panel
Type of connector:	Female+male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	9
Manufacturer:	CONNFLY
Connector:	Socket + plug
Mounting:	On panel
Type of connector:	Female+male
