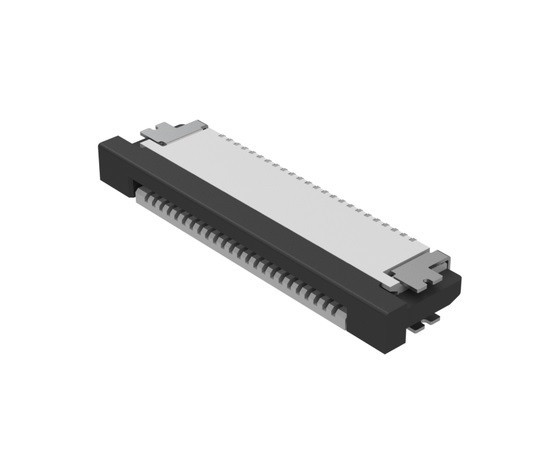

CF20241D0R0-NH CVILUX FFC connector

Symbol Micros: Z CF20241D0R0-NH

539624

Z CF20241D0R0-NH

Contractor Symbol:

Case : Rys.CF20241D0R0-NH

Datasheet

Add to favourites

24 pin; SMD; pitch: 0.5mm; horizontal

Parameters

Number of pins:	24
Spatial orientation:	Horizontal
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	24
Spatial orientation:	Horizontal
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm
