DS1034-09MUNSiSS CONNFLY D-Sub Connector

Symbol Micros: Z DD09W-N

502927

Z DD09W-N

Contractor Symbol:

Case : Rys.DI09P-N

Datasheet

Technical drawing Add to favourites

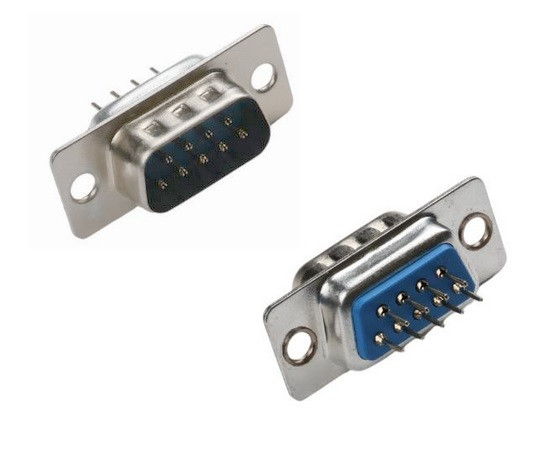

male; 9pin; for PCB; straight; through hole; w/o rivets and screws; metal housing; tinned; gold plated contacts; blue insulator; eqiv. DI09P; DS09P

Parameters

Manufacturer:	CONNFLY
Colour:	Blue
Number of pins:	9
Type of connector:	Plug
Orientation:	Straight

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1034-09MUNSiSS RoHS Case style: Rys.DI09P Datasheet

In stock:

200 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,4491	0,2718	0,2094	0,1889	0,1796

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1034-09MUNSiSS Case style: Rys.DI09P-N

External warehouse:

2350 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	0,1796

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Manufacturer:	CONNFLY
Colour:	Blue
Number of pins:	9
Type of connector:	Plug
Orientation:	Straight
