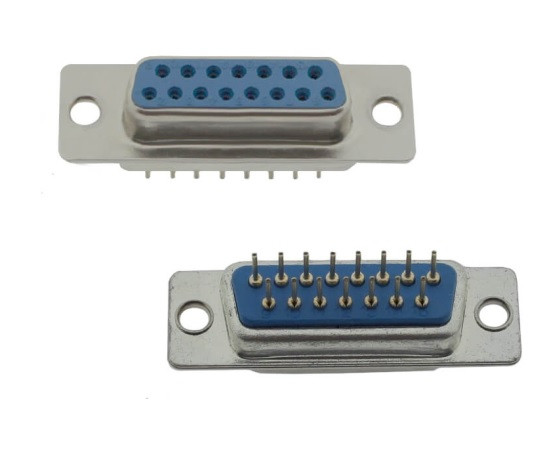

DS1034-15FUNSISS CONNFLY D-Sub Connector

Symbol Micros: Z DD15G-N

502916

Z DD15G-N

Contractor Symbol:

Case : Rys.DI15S

Technical drawing Add to favourites

female; 15pin; for PCB; straight; through hole; w/o rivets and screws; metal housing; tinned, gold plated contacts, blue insulator eqiv. DI15S-LF, DF15PP

Parameters

Colour:	Blue
Manufacturer:	CONNFLY
Number of pins:	15
Type of connector:	Socket
Orientation:	Straight

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1034-15FUNSISS Case style: Rys.DI15S

External warehouse:

1250 pcs.

Quantity of pcs.	50+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1421

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Colour:	Blue
Manufacturer:	CONNFLY
Number of pins:	15
Type of connector:	Socket
Orientation:	Straight
