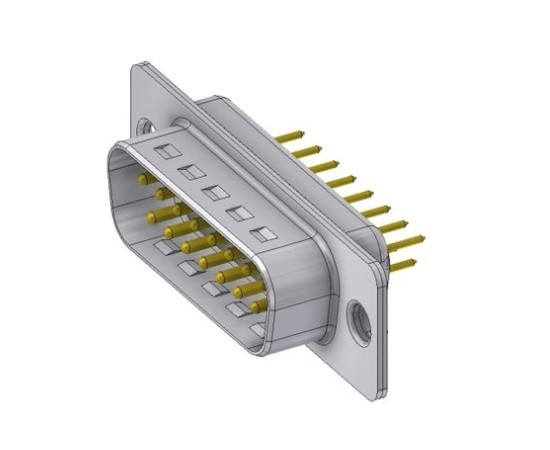

DTS15PY/2 DELTRON D-Sub Connector

Symbol Micros: Z DD15W-DELTRON

112643

Z DD15W-DELTRON

Contractor Symbol:

Case : Rys.DE001260

Datasheet

Technical drawing Add to favourites

male; 15pin; for PCB; straight; through hole; w/o rivets and screws; metal housing; copper alloy; white insulator

Parameters

Colour:	White
Manufacturer:	DELTRON
Number of pins:	15
Type of connector:	Plug
Orientation:	Straight

All parameters

Manufacturer:: DELTRON Manufacturer part number: DTS15PY/2 RoHS Case style: Rys.DE001260 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	4,7963	3,8375	3,4644	3,3298	3,2188

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Colour:	White
Manufacturer:	DELTRON
Number of pins:	15
Type of connector:	Plug
Orientation:	Straight
