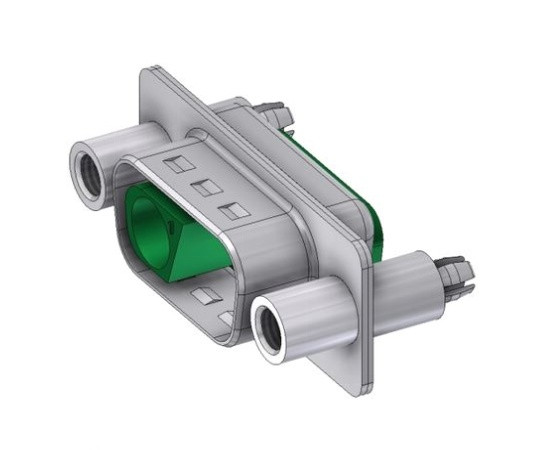

F/M D-Sub 2W2 w/o contacts, DELTRON

Symbol Micros: Z DE015230

111349

Z DE015230

Contractor Symbol:

Case : Rys.DE015230

Datasheet

Technical drawing Add to favourites

through hole, bolt: round, pressed-in, shell: steel, tin plated thread: UNC4-40, green insulator

Parameters

Type of connector:	Plug/Socket
Number of pins:	2W2

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of connector:	Plug/Socket
Number of pins:	2W2
