3 poles, pitch 5.08mm, heigth 13.4mm, green colour

Symbol Micros: Z DG142R-5.08/3

97769

Z DG142R-5.08/3

Contractor Symbol:

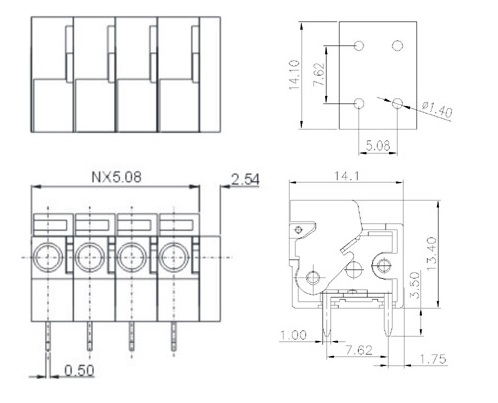

Case : Rys.DG142R-5.08/3

Datasheet

Technical drawing Technical drawing Add to favourites

300V, 10A, 22-16AWG, PA66 material, UL94V-0

Parameters

Height [m]:	13,4mm
Terminal pitch [m]:	5,08mm
Number of pins:	3
Colour:	Green

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height [m]:	13,4mm
Terminal pitch [m]:	5,08mm
Number of pins:	3
Colour:	Green
