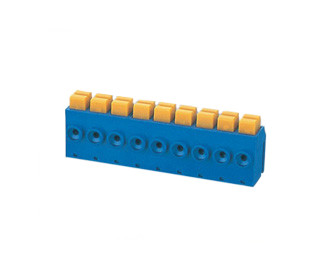

DG390-5.0-02P-12-00AH DEGSON Terminal block

Symbol Micros: Z DG390-5.0/3

42966

Z DG390-5.0/3

Contractor Symbol:

Case : Rys.DG390-5.0/3

Datasheet

Technical drawing Add to favourites

3 poles, pitch 5.0mm, heigth 15mm, blue colour, 300V, 8A, 22-18AWG; PBT material, UL94V-0

Parameters

Height:	11,5mm
Terminal pitch:	5,0mm
Number of pins:	3
Colour:	Blue
Manufacturer:	DEGSON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	11,5mm
Terminal pitch:	5,0mm
Number of pins:	3
Colour:	Blue
Manufacturer:	DEGSON
