female D-Sub 15pin hq for PCB, angled

Symbol Micros: Z DK15G13

31219

Z DK15G13

Contractor Symbol:

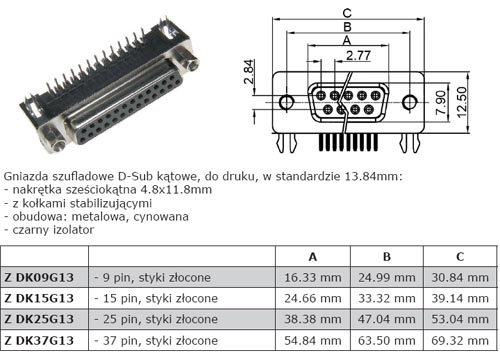

Case : Rys.DRB15SL

Datasheet

Technical drawing Add to favourites

fix screws 4.8x11.8mm, metal housing nickled, gold plated contacts, black insulator eqiv. DRB15LS

Parameters

Colour:	Black
Number of pins:	15
Manufacturer:	HSM
Type of connector:	Socket
Orientation:	Angled

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Black
Number of pins:	15
Manufacturer:	HSM
Type of connector:	Socket
Orientation:	Angled
