female D-Sub 15pin hq for PCB, angled

Symbol Micros: Z DK15G9

31223

Z DK15G9

Contractor Symbol:

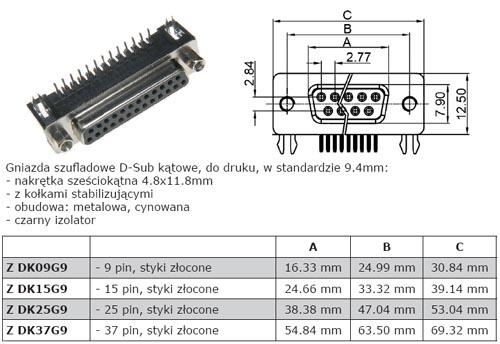

Case : Rys.DRB15ML

Datasheet

Technical drawing Add to favourites

fix screws 4.8x11.8mm, metal housing nickled, gold plated contacts, black insulator eqiv. DRB15MS, DHP9-15F

Parameters

Colour:	Black
Manufacturer:	HSM
Number of pins:	15
Type of connector:	Socket
Orientation:	Angled

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Black
Manufacturer:	HSM
Number of pins:	15
Type of connector:	Socket
Orientation:	Angled
