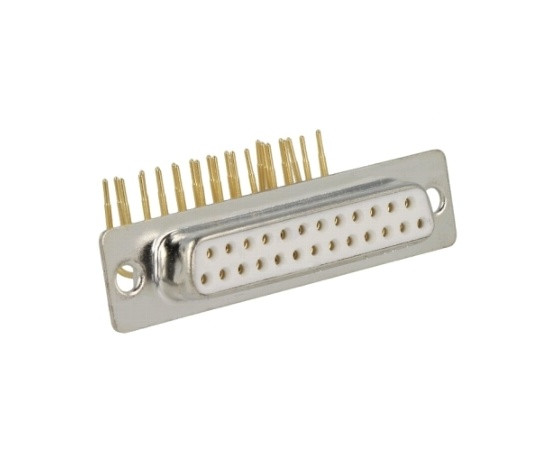

DS1034-03-25FWN8SS CONNFLY D-Sub Connector

Symbol Micros: Z DK25G9-2

113704

Z DK25G9-2

Contractor Symbol:

Case : Rys.DK25G9-2

Datasheet

Technical drawing Add to favourites

female; 25pin; for PCB, angled; standard; 9.4mm; w/o rivets and screws, w/o procection; copper alloy contacts, white insulator, eqiv. DH25F

Parameters

Colour:	White
Manufacturer:	CONNFLY
Number of pins:	25
Type of connector:	Plug
Orientation:	Angled

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1034-03-25FWN8SS RoHS Case style: Rys.DK25G9-2

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,8758	2,4861	2,2560	2,1105	2,0541

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Colour:	White
Manufacturer:	CONNFLY
Number of pins:	25
Type of connector:	Plug
Orientation:	Angled
