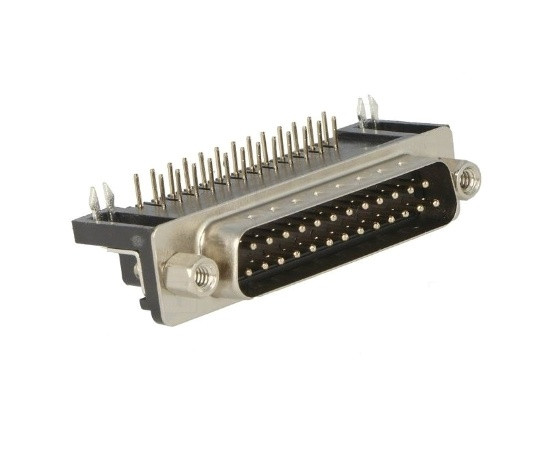

male D-Sub 25pin hq for PCB, angled 9.4mm

Symbol Micros: Z DK25W9

32750

Z DK25W9

Contractor Symbol:

Case : Rys.DRB25MP

Datasheet

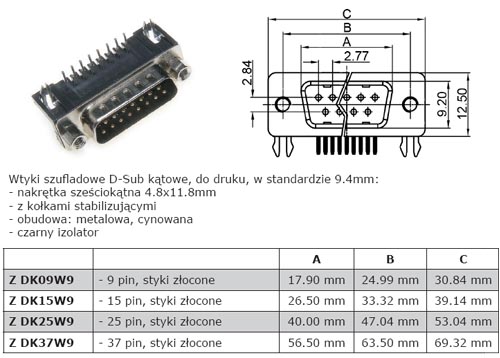

Technical drawing Add to favourites

fix screws 4.8x11.8mm, metal housing nickled, gold plated contacts, black insulator eqiv. DRB25MP, DHP9-25M

Parameters

Colour:	Black
Number of pins:	25
Manufacturer:	HSM
Type of connector:	Plug
Orientation:	Angled

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Black
Number of pins:	25
Manufacturer:	HSM
Type of connector:	Plug
Orientation:	Angled
