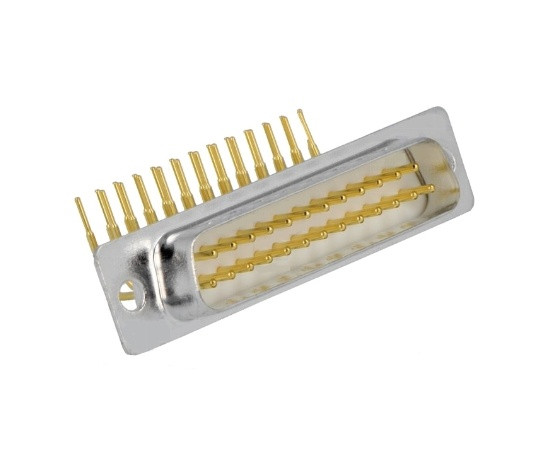

DS1034-03-25MWN8SS CONNFLY D-Sub Connector

Symbol Micros: Z DK25W9-2

113700

Z DK25W9-2

Contractor Symbol:

Case : Rys.DK25W9-2

Datasheet

Technical drawing Add to favourites

male; 25pin; for PCB; angled; w/o rivets and screws, w/o procection; standard 9,4mm; copper alloy contacts, white insulator, eqiv. DH25M

Parameters

Colour:	White
Manufacturer:	CONNFLY
Number of pins:	25
Type of connector:	Plug
Orientation:	Angled

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1034-03-25MWN8SS RoHS Case style: Rys.DK25W9-2

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,1813	2,8385	2,6319	2,4981	2,4464

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Colour:	White
Manufacturer:	CONNFLY
Number of pins:	25
Type of connector:	Plug
Orientation:	Angled
